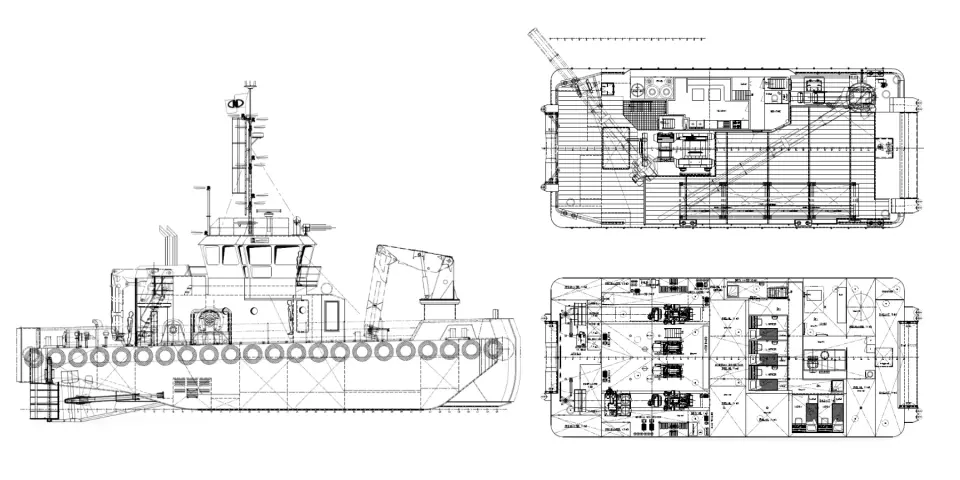

Deck layout

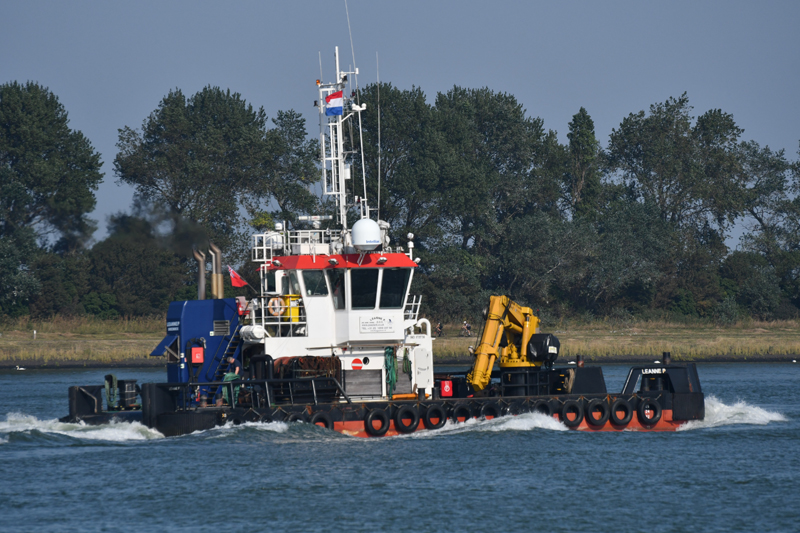

Leanne P

Maassluis

Eurocarrier 2395

9705706

23837 Z 2014

2HMX9

June 2014

23.95 meters

9.45 meters

2.1 meter

100 meters²

6 tonne per meter²

Bureau Veritas 1, hull and machinery, special service/
multipurpose ship, unrestricted area

2 x Caterpillar C32, 2 x 634 kW at 1800 rpm

xxxx

Box cooled

9 knots

20 tonnes approx

Caterpillar C6.6, 2 x 156 kVA
Westfalia OTC-2, 1140 l/h

Anchor – 1 x 210 kgs
Chain – 17,5 mm, total length: 82.5
Anchor winch – 1, 17,5 mm hydraulic heeling motor:
140 bar-60 ltr/min

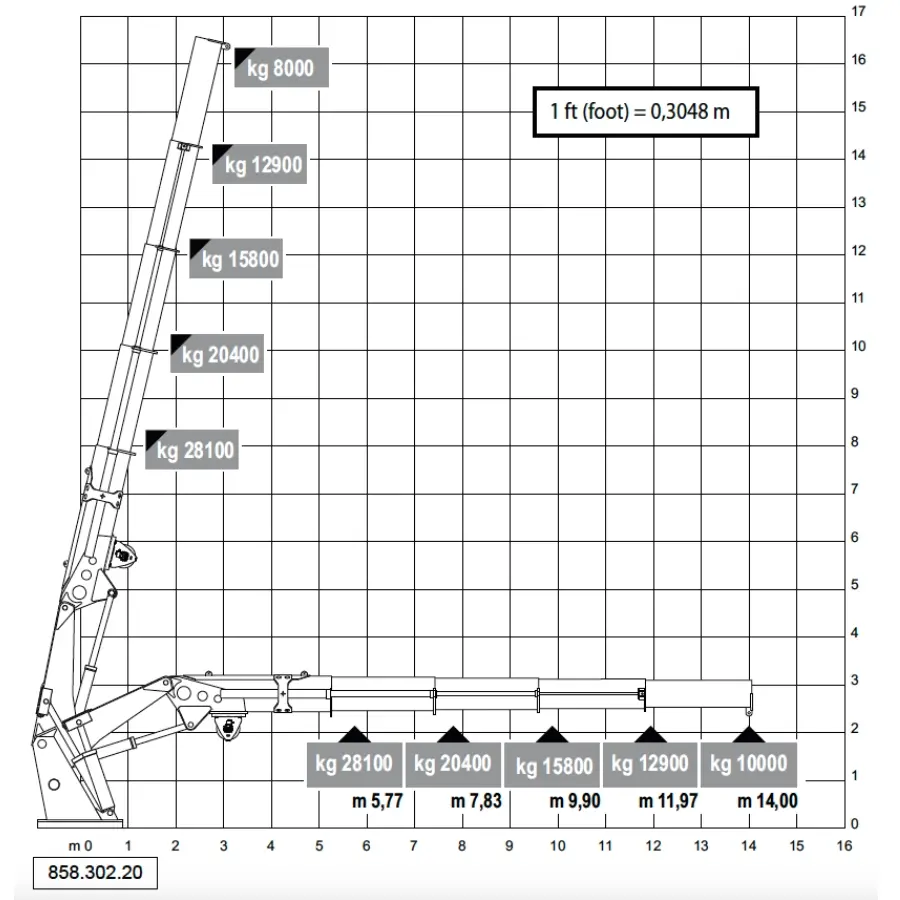

Deck crane – Heila HLRM 170-4S
Handling/towing winch – 70 tonnes
Towing hook – 1 x Mampaey 25 tonnes SWL
Tugger winch – 1 x 10 tonnes
Towing pins – 2 x Hydraulic towing pins, 1 x Chain stopper

Yes, 28 meter²

70 meter3 transferrable & metered

50 meter3 transferrable & metered

Magnetic compass
Electronic compass
Radar
(D)GPS
Electronic chart plotter
Echo sounder
Watch keeper alarm
AIS
Navtex
Talkback unit
Auto pilot

GSM-UMTS
IHF/HF
VHF
Maritime PC

Bow roller
Double push bow
Towing hook/bit SWL 30 tonnes
Forward hydraulic fork
Forward hydraulic pins
Towing pins
Deck flood lights

Living spaces for 6 persons
2 double crew and 2 single crew cabins
Galley/mess
Sanitary facilities
Heated and air-conditioned
