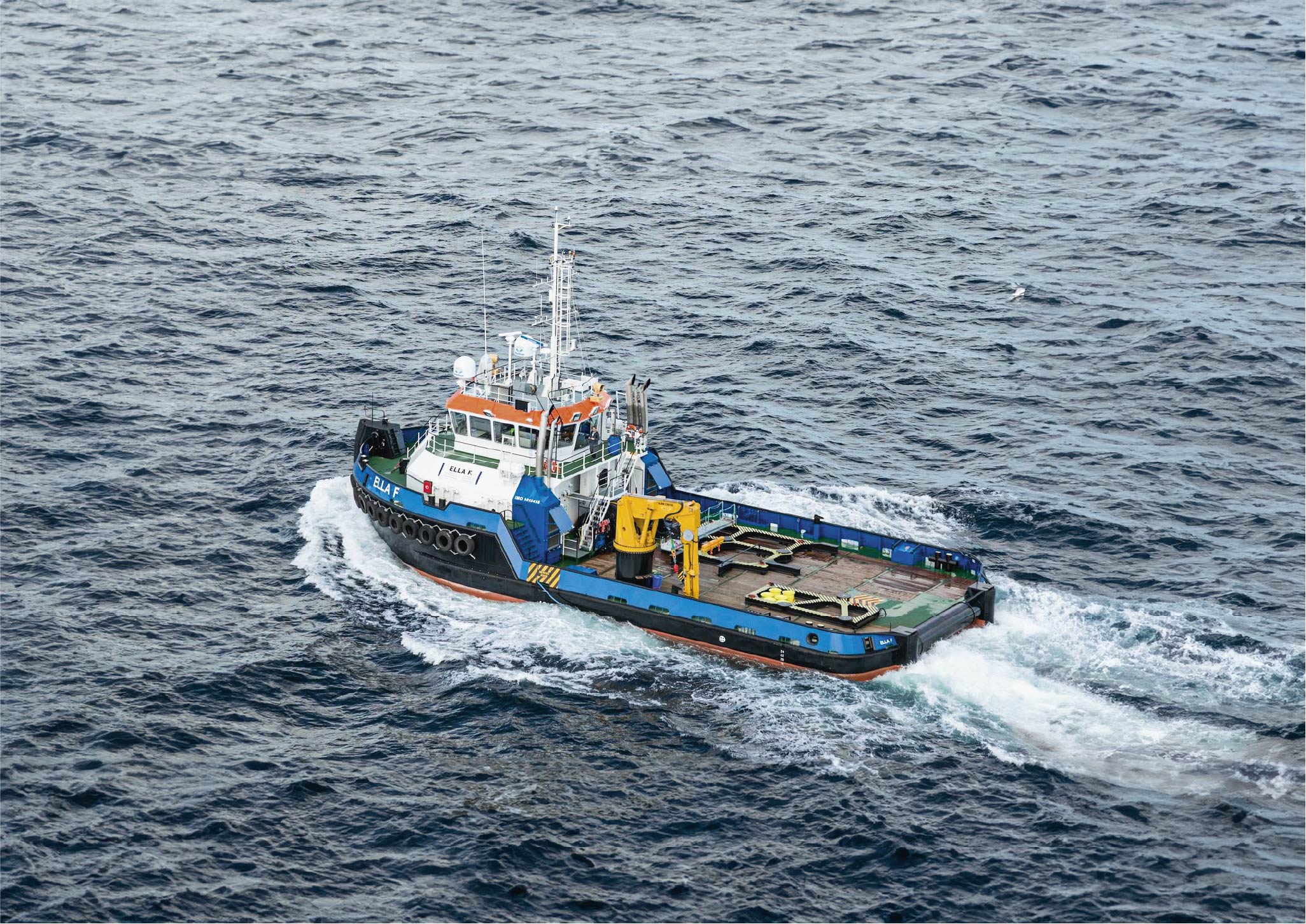

ELLA F
Ella F is a revolutionary new evolution in workboat design. The concept delivers a vessel with the power of a tug, the versatility of a shoalbuster, and the ability to operate in shallow waters typically reserved for small multicats. A truly unique and groundbreaking concept. Ella F is also an ideal choice for survey work and UXO clearance.

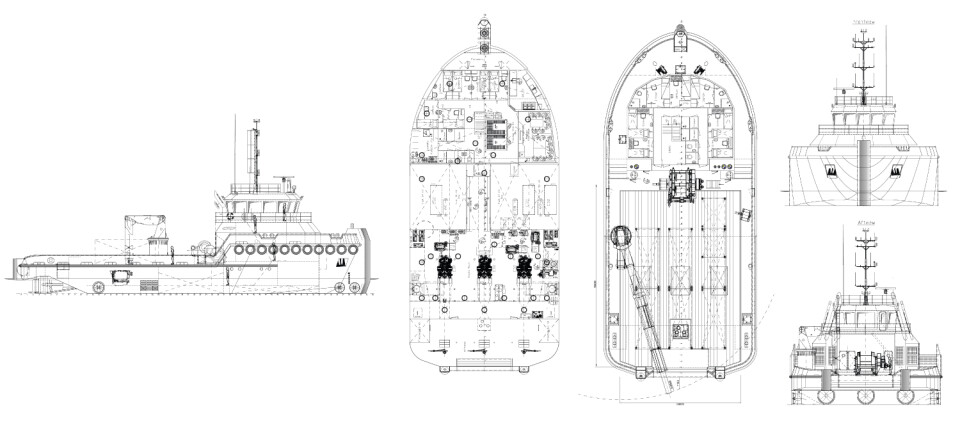

Deck Layout
Specifications
Boat name
Ella F
Port of registry
Maassluis
Type
Neptune 35 m Ultra Shallow Draft DpII MPSV
IMO number
9813498
SI number
57854
Call sign
PBMN
Build date
March 2017
LOA
35.60 meters
Beam
15 meters
Draft
1.5 meters
Deck space/area
225 meters²
Deck load
5 tonne per meter²
Class
Bureau Veritas 1 + Hull & Machinery Tug - Inrestricted navigation - AUT - UMS, Dunapos AM/AT R
Propulsion
3 x Caterpillar C32 2907 kw / 3900 HP
Bowthrusters
1 x 275 kw Tunnel & 1 x 360° grid 275 kw
Sternthrusters
2 x 275 kw Tunnel
Cooling
1 genset air / keel cooled, 2 keel cooled
Speed
10.0 knots approx
Bollard pull
31 tonne
Generator(s)
3 x Catterpillar C9 + 1 x Catterpillar C32
Deck equipment
Crane type: HLRM-4SL
Heila HLRM 230 - 4SL with St Crane Winch
10.3 tonnes @ 16.5 meters - 24.4 tonnes @ 7.89 meters Winches
100 tons Ridderinkhof Anchor Winch @ 7 m / 18 m per min
64 tons Ridderinkhof Towing Winch @ 11 m / 28 m per min
15 tonne Brevini Tugger Winch
Store/Workshop area
Yes
Fuel capacity
173 meter³
Water capacity
85 meter³
Crane lifting capacity

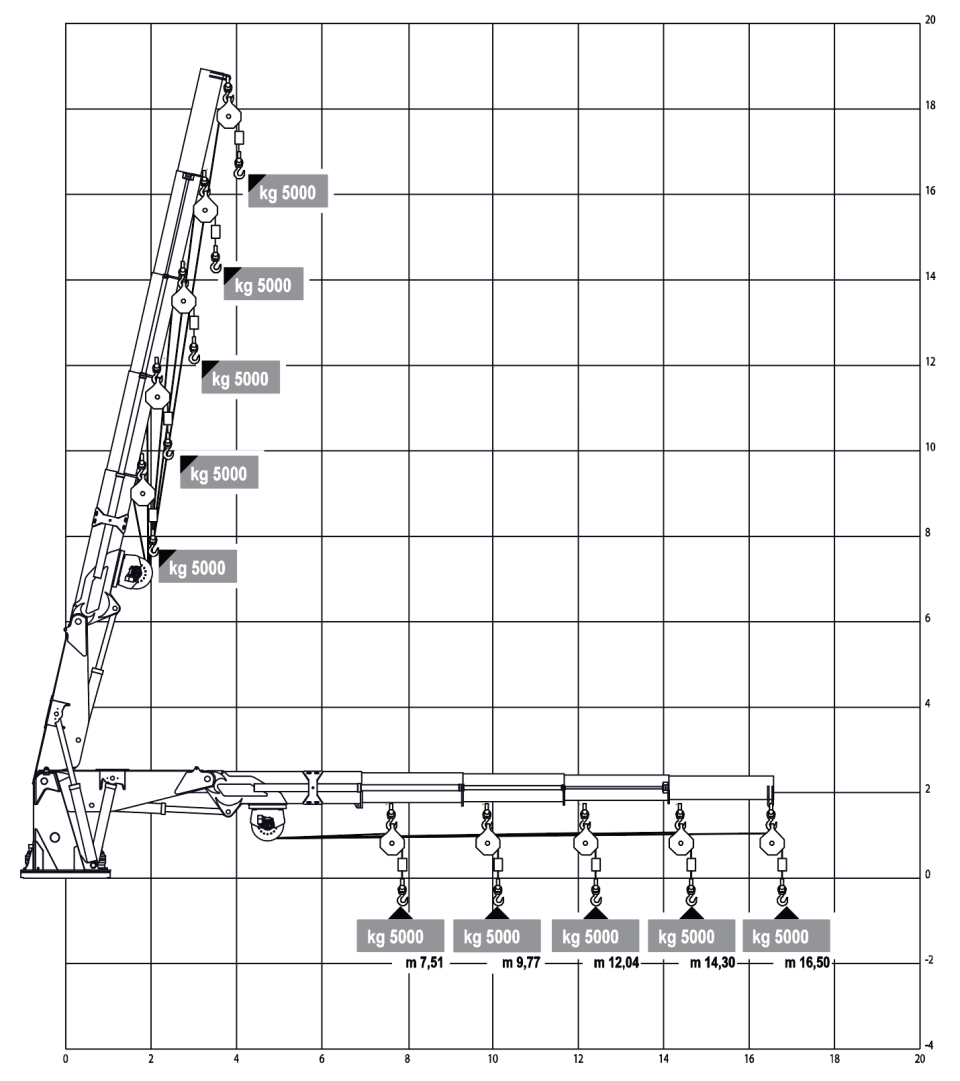

HLRM 230-4SLK- Loading Diagram (with winch)
HLRM 230-4SLK - Loading Diagram (with hook)
